Product Introduction
The ESN1000 Suspended Solids Analyzer adopts the principle of 90° infrared scattering and features an ultra-low turbidity detection limit and high-precision measurement.
Instrument Features
- Low lower detection limit;
- Digital sensor with strong anti-interference ability;
- Real-time monitoring with fast response;
- Supports immersion and pipeline installation;
Typical Applications
Monitoring of enterprise wastewater discharge outlets
Monitoring of influent and effluent water in sewage treatment plants
Monitoring of black and odorous water bodies
Surface water monitoring

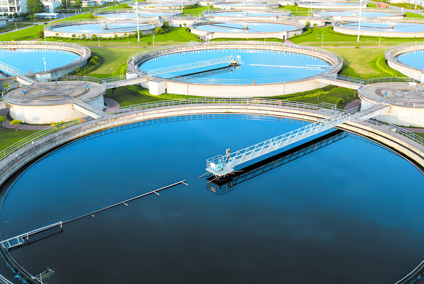

Wastewater Treatment
Surface Water
Wastewater Discharge Outlet

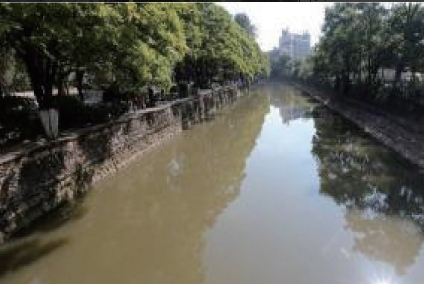

Black and Odorous Water Bodies
Technical Specifications
| Display | 7-inch screen (resolution 1024*600) | Power Supply & Consumption | 220VAC <10W; 24VDC<300mA |
|---|---|---|---|
| Signal Output | RS485*1; 4-20mA output*1 | Relay | 1 channel |
| Construction Material & Protection Class | ABS; IP65 | Dimensions & Weight | 230*180*100 (L*W*D); 2kg |
| Operating Temperature | 0-45°C, water sample temperature 0-50°C | Measurement Method | 90° light scattering method |
| Range/Resolution | 0-3000mg/L; 0.1mg/L | Comparison Error (Measurement Accuracy) | < ±5% or 0.2mg/L, whichever is larger |
| Repeatability | ±5% | Lower Detection Limit | 1mg/L |
